Honeywell V4073A Mid-Position Zone valve


White
(input)		 Grey
(input)		 Valve Position Orange
(output)
O O B (idle)
Hot Water		 O
Live O A + B
CH and HW		 O
O Live Hold in last position  O
Live Live A
Radiators		 Live

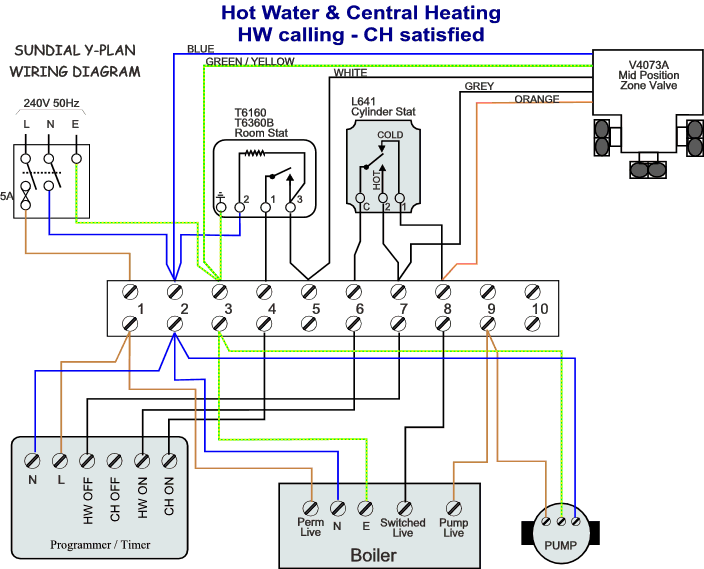

With the room thermostat now open, the live is removed from the white wire to the valve. The valve now returns to its idle position, B. The valve does this under spring tension, no electrical power is used. Live from the programmer (HW ON) now fires the boiler via the cylinder thermostat (cold) and terminal 8.
